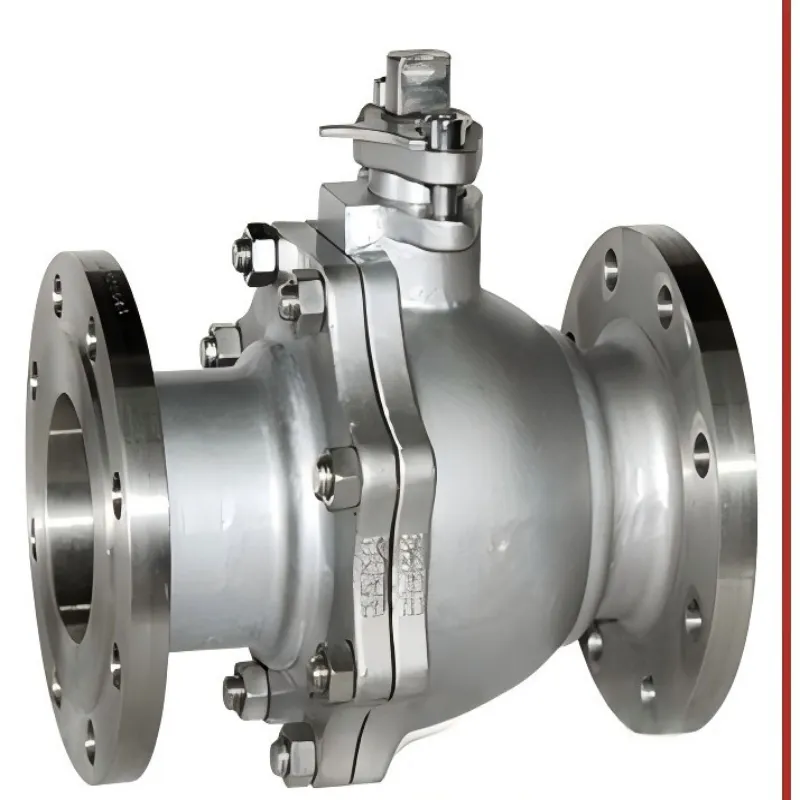

Stainless steel ball valve Q341F-16P turbine ball valve，turbine ball valve

Q341F stainless steel turbine ball valve

In all kinds of valves, the flow resistance of the ball valve is small. When the full diameter ball valve is opened, the ball channel, the body channel and the connecting pipe diameter are equal to one diameter, and the medium can flow through almost without loss. Application in petroleum refining, chemical, paper, pharmaceutical, food, water, electricity, municipal, steel and other industries.

Q341F stainless steel turbine ball valve Features:

(1) Small fluid resistance, compact structure, reasonable design, smooth channel.

(2) The sealing surface is made of stainless steel and hard alloy, with long service life. It can also use heat-resistant and corrosion-resistant plastics, good sealing, and has also been used in vacuum systems.

(3) Convenient operation, rapid opening and closing, from full open to full close as long as the rotation of 90°, convenient for long-distance control.

(iv) Tight device: in order to prevent improper operation of the valve switch, there are locking holes in the fully open and fully closed positions of the valve to ensure that the valve is in the correct position.

(5) When fully open or fully closed, the sealing surface of the sphere and the valve seat is isolated from the medium, and the corrosion of the sealing surface of the valve will not be caused when the medium passes through.

A device for cutting, distributing, and changing the direction of flow of a medium

The worm flange ball valve is a kind of valve device that can cut off, distribute or control the flow direction of the pipeline medium by rotating the ball. It adopts flange connection and the drive mode is worm wheel drive. The main models include Q341F, Q347Y-16C and so on. It is suitable for petroleum, chemical industry, metallurgy, electric power and other fields, and can deal with water, gas, oil, acid and corrosive media [1].

The valve is divided into floating type, fixed type and elastic type according to the structure and sealing requirements: floating ball valve depends on medium pressure seal, suitable for low and medium pressure scenarios; Fixed ball valve through the bearing to transfer pressure and reduce friction, suitable for high pressure and large caliber pipeline; Elastic ball valve with elastic groove deformation pressure seal, compatible with high temperature and high pressure conditions. The drive system uses the worm gear to drive the ball to rotate 90° to realize the opening and closing, and the operating torque is small and supports manual or remote control. It is designed to reduce fluid resistance, compact body structure, sealing materials cover plastic, metal and polystyrene, working temperature up to 450℃, pressure range covering vacuum to high pressure environment

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
