Product Code : VF--DCC-D176-CU

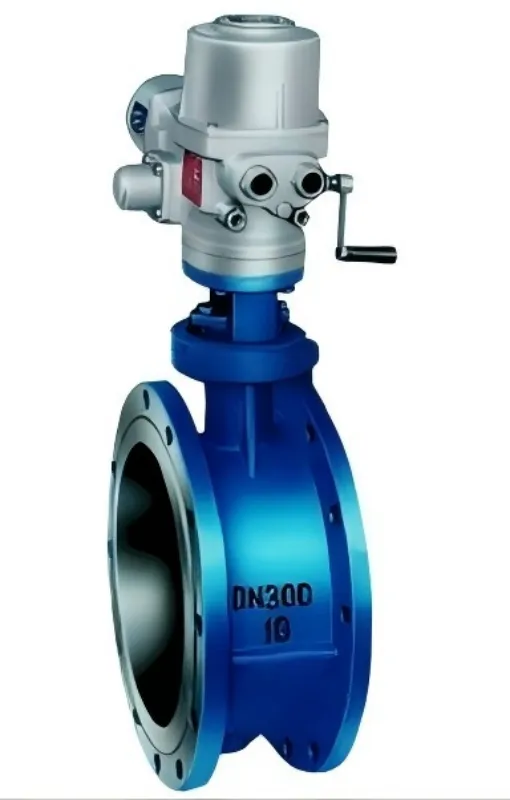

Product name: Stainless steel electric butterfly valve
Model: D71X/F,D371X/F
Drive mode: electric, manual, turbine, pneumatic
Connection: clamp type, flange type
Structural form: midline, double eccentricity
Seal structure: soft seal, hard seal
Pressure range: 1.0MPa-1.6MPa
Nominal diameter: DN40-1200
Commonly used material: stainless steel, etc
Applicable temperature nitrile rubber: -40℃ ~ 90℃ fluorine rubber: -20℃ ~ 200℃
Applicable medium; Water, air, natural gas, oil and weak corrosive fluids
Leakage rate; It conforms to GB/T13927-92 standard
Driving mode; Worm gear transmission, electric, pneumatic, hydraulic
Stainless steel electric butterfly valve is widely used in water, metallurgy, chemical industry, building materials, power station, glass and other industries in the ventilation, environmental protection projects containing dust cold air or hot air gas pipeline
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Stainless steel electric butterfly valve is widely used in water, metallurgy, chemical industry, building materials, power station, glass and other industries in the ventilation, environmental protection projects containing dust cold air or hot air gas pipeline, as a gas medium to adjust the flow or cut off device usually by the Angle stroke electric actuator (0~90° partial rotation) and the butterfly valve as a whole through the mechanical connection, after installation and debugging together.
The main characteristics of stainless steel electric butterfly valve are:
1, reasonable design, unique structure, light weight, opening and closing speed.
2, small operating torque, convenient operation, labor-saving dexterity.
3, can be installed at any position, convenient maintenance.
4, the seal can be replaced, the sealing performance is reliable to achieve bidirectional sealing zero leakage.
5, sealing materials need aging, corrosion resistance, long service life and other characteristics.
Stainless steel electric butterfly valve is widely used in water, metallurgy, chemical industry, building materials, power station, glass and other industries in the ventilation, environmental protection projects containing dust cold air or hot air gas pipeline, as a gas medium to adjust the flow or cut off device usually by the Angle stroke electric actuator (0~90° partial rotation) and the butterfly valve as a whole through the mechanical connection, after installation and debugging together.
