Product Code : VF--ZHCC-ZH44-CU

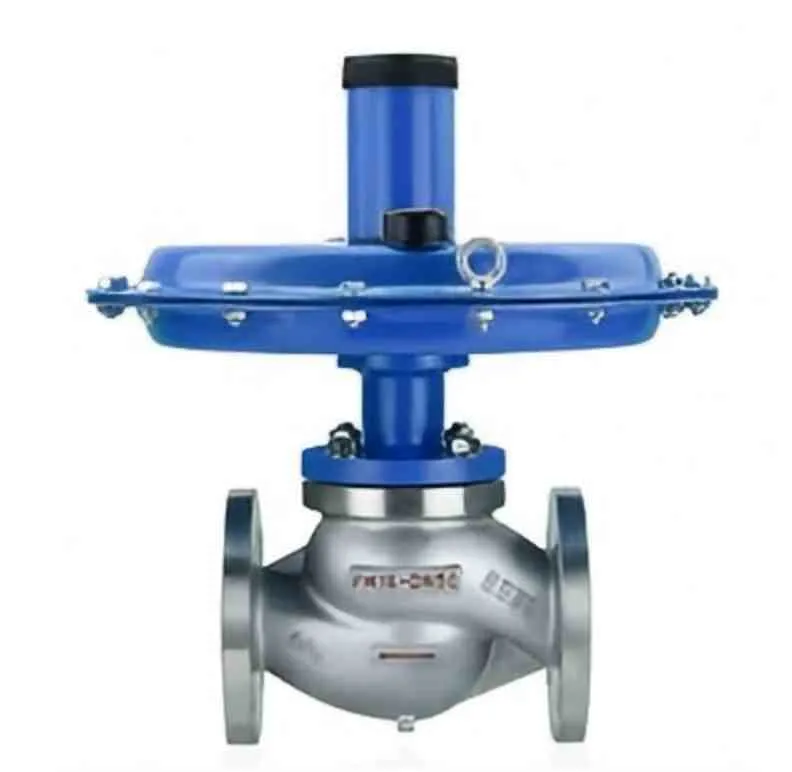

Valve model: Self-operated pressure and differential pressure combination valve
Diameter specifications: DN15 - DN150mm
Structural form: Straight-through cast valve
Valve body material: Cast steel (WCB), stainless steel (304, 316, 316L)
Nominal pressure: PN16, PN40
Applicable temperature: ≤150°C
Application scope: Non-corrosive liquids, gases and vapors
Product features: Through the combination components, multiple combinations of control can be achieved
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Self-operated pressure and differential pressure combination valve, without the need for external energy, can operate in places without electricity or air. It is both convenient and energy-saving. It is mainly composed of a pressure valve, a differential pressure valve, two actuators and two preset force springs. It is suitable for non-corrosive liquids, gases and steam. It is used for pressure or differential pressure control in system pipelines. The pressure segmentation range details overlap each other, the adjustment accuracy is high, it works according to the principle of priority action, and cannot control two parameters simultaneously.
The self-operated pressure and differential pressure combination valve can perform multiple combinations through the combination components, without the need for external control instruments.The self-operated pressure and differential pressure combination valve can be combined in multiple ways through the combination components, without the need for external control instruments. The system is simple and cost-effective, and the pressure setting value can be continuously adjusted during operation. The system is simple and cost-effective, and the pressure setting value can be continuously adjusted during operation. It adopts a pressure balancing mechanism, making the regulating valve sensitive and precise in control. It adopts a pressure balancing mechanism, making the regulating valve sensitive and precise in control.
