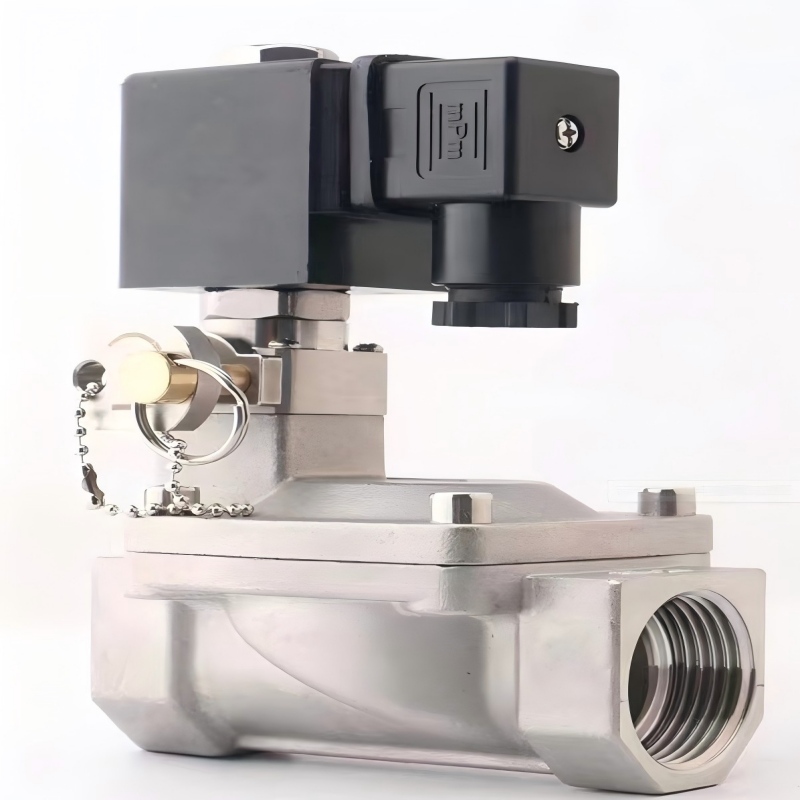

Product Code : VF--DCCC-DC44-CU
Applicable media: water, steam, pharmaceutical liquid, air, oxygen, alcoholic beverages, and other corrosive fluids.
Nominal diameter: DN10 - 50
Temperature range: -20 to +180℃
Drive type: Electromagnetic
Connection form: Quick-installation
Structural form: Diaphragm type
Sealing structure: Silicone rubber
Pressure range: 1.6 MPa
Medium viscosity: Less than 50 C St (Customization required if higher than this)
Protection performance: Waterproof, explosion-proof (Exd IICT5), anti-corrosion
Connection method: Socket type; Lead-out type; Plug type
Control mode: Normally open, normally closed
Power supply voltage: AC (380V, 240V, 220V, 24V), DC (110V, 24V)
Connection method: Internal thread, Flange
Leakage rate: Zero
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
It is a principle combining direct action and pilot action. When there is no pressure difference between the inlet and the outlet, after power is applied, the electromagnetic force directly lifts the pilot valve and the main valve closure element one by one upwards, and the valve opens. When the inlet and the outlet reach an air pressure difference, after power is applied, the electromagnetic force acts on the pilot valve, causing the pressure in the lower chamber of the main valve to rise and the pressure in the upper chamber to drop. Thus, the pressure difference is utilized to push the main valve upwards; when the power is cut off, the pilot valve uses the spring force or the medium pressure to push the closure element downwards, causing the valve to close.
Hygienic electromagnetic valves refer to the valve pipe fittings used in pharmaceutical, food and other industries for places with strict hygiene requirements. The valve body material used is 304 stainless steel and 316 and other stainless steels, and the sealing material mainly uses silicone rubber and PTFE. The purchased items are for maintenance and related equipment of pharmaceutical or food factories, and the purchasers are basically pharmaceutical, food equipment system integration and other related enterprises.
Hygienic electromagnetic valves refer to the valve and pipe fittings used in industries such as pharmaceuticals and food, for applications where hygiene standards are required. The valve body material used is 304 stainless steel and 316 stainless steel, and the sealing material mainly uses silicone rubber and PTFE. The purchased items are for the maintenance and related equipment of pharmaceutical or food factories. The purchasers are basically from the fields of pharmaceutical and food equipment system integration.
