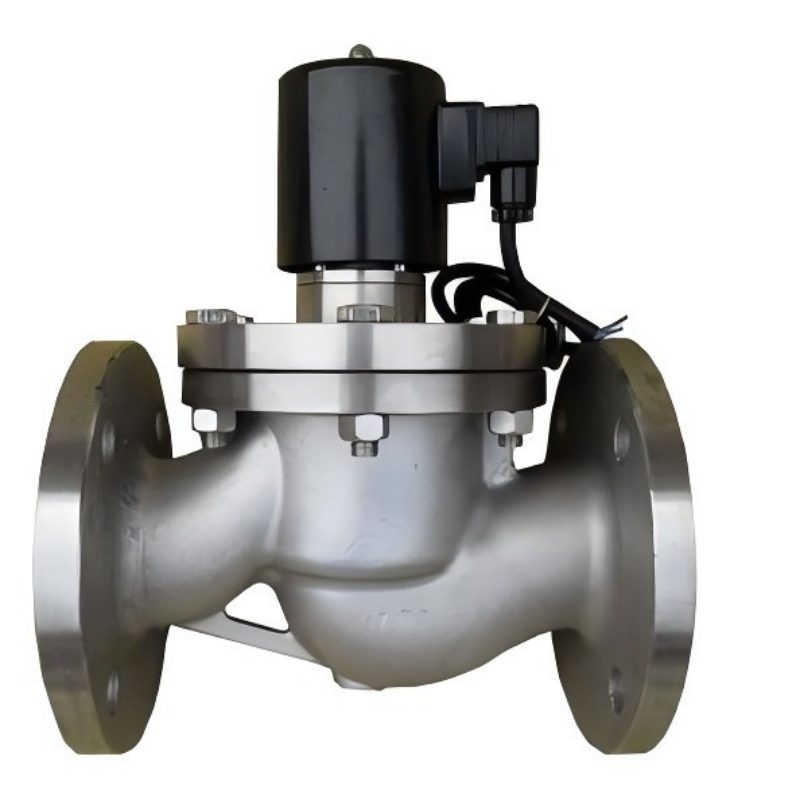

Product Code : VF--DCCC-DC43-CU
Principle structure: Direct-acting guide piston type
Principle structure: Direct-acting guide piston type
Working environment temperature: -20 to +50℃ - 40 to +80℃
Working environment temperature: -20 to +50℃ - 40 to +80℃
Coil operating temperature: < +50℃, < +85℃
Coil operating temperature: < +50℃, < +85℃
Control mode: Normally closed, Normally open
Control mode: Normally closed, Normally open
International standard voltage: AC (380V, 240V, 220V, 24V), DC (110V, 24V)
Flowing fluid medium: water, air, oil, etc.
International standard voltage: AC (380V, 240V, 220V, 24V), DC (110V, 24V)
Flowing fluid medium: water, air, oil, etc.
Fluid flow temperature: >-100℃, >-200℃, <+60℃, <+120℃, <+200℃
Flow fluid pressure: 1 bar, 6 bar, -0.1 bar
Fluid flow temperature: >-100℃, >-200℃, <+60℃, <+120℃, <+200℃
Flow fluid pressure: 1 bar, 6 bar, -0.1 bar
Valve body material: Stainless steel (304, 316, 316L)
Valve body material: Stainless steel (304, 316, 316L)
Coil connection method: iron cover lead wire, plastic-sealed wire box plug
Coil connection method: iron cover lead wire, plastic-sealed wire box plug
Sealing material performance: resistant to heat, pressure, wear and corrosion
Sealing structure: Arc-shaped conical line and planar sealing
Sealing material performance: resistant to heat, pressure, wear and corrosion
Leakage rate: Zero
Sealing structure: Arc-shaped conical line and planar sealing
Performance features: Wide applicability, high sensitivity, strong reliability, long lifespan.
Leakage rate: Zero
Performance features: Wide applicability, high sensitivity, strong reliability, long lifespan.
Scope of work: Water supply and drainage, medical, food, metallurgy, petrochemicals, tobacco, power equipment, textile, packaging equipment, shipbuilding industry, oil filtering equipment, cleaning equipment, drying equipment, boilers, filling and metering, etc.Scope of work: Water supply and drainage, medical, food, metallurgy, petrochemicals, tobacco, power equipment, textile, packaging equipment, shipbuilding industry, oil filtering equipment, cleaning equipment, drying equipment, boilers, filling and metering, etc.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Ex-proof solenoid valve normally closed: When the coil is energized, the pilot valve core is attracted, the pilot hole opens, the upper chamber of the valve is relieved of pressure, and the piston is pushed by the medium pressure in the lower chamber. The solenoid valve opens. When the coil is de-energized, the pilot valve core is reset by the spring, the pilot hole closes, and the upper chamber of the valve is pressurized by the piston throttling hole and the thrust of the reset spring. The solenoid valve closes.
Explosion-proof solenoid valve in the open position: When the coil is energized, the pilot valve core is reset by the spring, the pilot hole is closed, and the upper chamber of the valve is pressurized by the piston throttling hole and the push force of the reset spring. The solenoid valve is closed. When the coil is de-energized, the pilot valve core is reset by the spring, the pilot hole is opened, the upper chamber of the valve is depressurized, and the piston is pushed by the medium pressure in the lower chamber, and the solenoid valve is opened.
Stainless steel flange explosion-proof solenoid valve is used for water supply and drainage, medical, food, metallurgy, petrochemical, tobacco, power equipment, textile, packaging equipment, shipbuilding industry, oil filtering equipment, cleaning equipment, drying equipment, boilers, filling and metering, etc.
