Product Code : VF--DCCC-DC48-CU
Applicable media: hot water, superheated steam, high-temperature air, high-temperature heat transfer oil, etc.
Voltage deviation: ±10%
Valve body material: forged brass, stainless steel (316, 316L)
Sealing material: FKM, PTFE, metal sealing
Connection method: internal thread or flange
Control method: normally closed (opens when powered on), normally open (closes when powered on)
Electrical connection: leads or junction box type
Operating voltage: standard AC220V, DC24V, other voltages selectable
Special options: explosion-proof solenoid valve, explosion-proof grade dIIBT4, Diict5
Installation instructions: It is best to have the coil vertically upward. It can also be installed arbitrarily as needed.
Protection level: IP65
Working duty: 100% ED
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

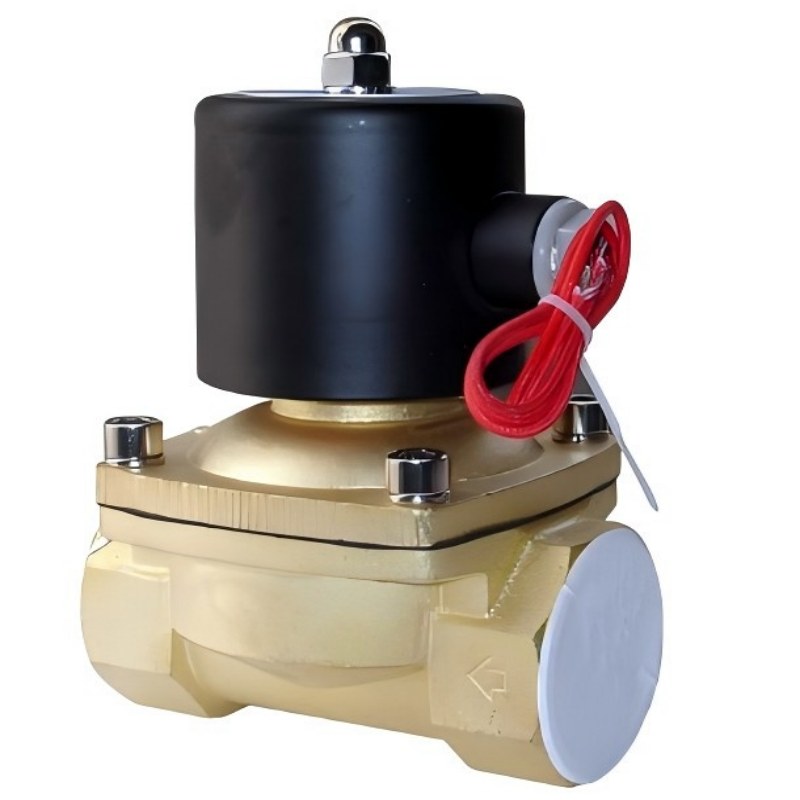

The high-temperature solenoid valve is a type of pilot-direct acting solenoid valve, which is widely used in shipbuilding, testing equipment, heating equipment, hydraulic equipment, etc., in thermal conductive systems with a working temperature above 300℃. For example, it is mainly used in the steam extraction pipeline drainage system of power stations and the exhaust system of evaporators, for dual-position automatic regulation and remote control of the medium in the pipelines.
Application scope
The high-temperature solenoid valve is widely used in shipbuilding, testing equipment, heating equipment, hydraulic equipment, etc., in thermal conductive systems with a working temperature above 300℃. It is applied in heating devices, industrial furnaces, high-temperature soot blowing, drying equipment, steel mills, thermal power plants, textile printing and dyeing, chemical equipment, HVAC, printing equipment, pharmaceutical machinery, petrochemicals, electroplating and painting, etc. in control systems. Product features
The valve cores of the high-temperature electromagnetic valves are all made of stainless steel pistons. The piston rings are made of special materials with high temperature resistance and wear resistance. There is no direct friction between the piston and the metal valve chamber, and there is no restriction on the installation direction of the valve body. A specially designed coil is used, and a heat dissipation structure is adopted, so it is less likely to be burned out. After a long period of inactivity, restarting the action is still very sensitive. The minimum starting pressure is 0.2 MPa.
This electromagnetic valve is suitable for various high-temperature, ultra-high-temperature, normal-pressure, and high-pressure environments. It is applicable to the automatic control of pipelines such as medium-high-temperature hot water, heat transfer oil, high-temperature steam, saturated steam, and superheated steam. With a maximum temperature resistance of up to 450 degrees Celsius, it is widely used in industries such as medical devices, clothing equipment, petrochemicals, biopharmaceuticals, HVAC, electroplating and painting, drying equipment, rubber and plastic machinery, food and beverage, papermaking, dyeing, and power and mining. It is the preferred product for automation control engineering, project renovations, and equipment matching.
