Product Code : VF--DCC-D218-CU

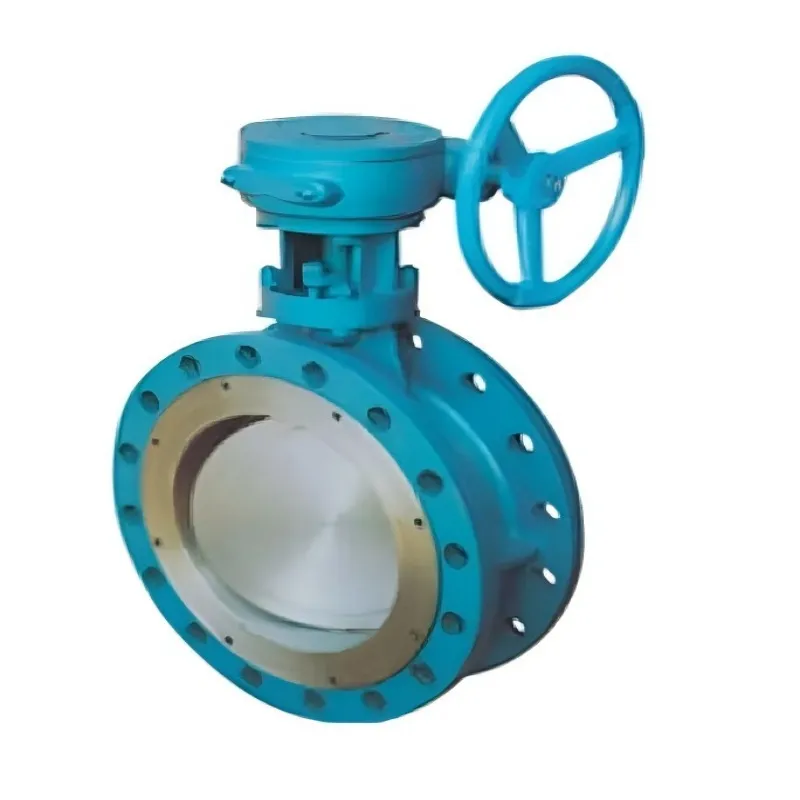

Butterfly Valve with elastic seat (Dt42X R model)
Product standard: GB12238
Equivalent use: AWWA C504
Nominal pressure: PN0.25-2.5MPa
Nominal diameter: DN200-6000mm
This series of butterfly valve is on the basis of D41X, the rubber sealing ring is mounted on the valve body, the rubber sealing ring has the characteristics of ring bandwidth and large elasticity; The butterfly plate sealing ring is hot installed stainless steel sealing ring, firmly combined, smooth sealing surface, can reduce friction torque, greatly improve the sealing performance and service life of the valve.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Elastic seat butterfly valve is a type of valve that relies on an elastic seal ring to achieve good closing performance. It is widely used in water treatment, HVAC, chemical, food and beverage industry pipeline systems for cutting off or regulating medium flow.
Elastic seat butterfly valve adopts rubber or polytetrafluorethylene as the seat material, with good sealing and corrosion resistance, and can provide manual, electric, pneumatic and other driving methods. Its design features include:
Secondary SEAL DESIGN: THE primary seal is obtained by prepressing the polished shoulder of the valve plate and the inner surface of the valve seat. The secondary seal is the interference fit between the valve seat shaft hole and the valve stem, effectively preventing the media from leaking from the valve stem to the outside of the valve body.
Temperature range: According to different seat materials, the applicable temperature range is different, such as EPDM EPDM rubber seat valve applicable temperature is -40℃ to 120℃, NBR nitrile rubber seat valve applicable temperature is -15℃ to 100℃, PTFE/EPDM polytetrafluorethylene (PTFE/EPDM) gasped EPDM rubber seat valves are suitable for temperatures from -40 ° C to 150 ° C and instant temperature up to 180 ° C.
Replaceable seat design: reduces maintenance costs.
Self ADJUSTABLE DOUBLE V stem PACKING: Self - compensated and two - way seal ensures that no external material can enter the body through the stem.
Seat MOLDED one-PIECE O-RING: No additional gasket is required to maintain flange seal during installation
Elastic seat butterfly valve is a type of valve that relies on an elastic seal ring to achieve good closing performance. It is widely used in water treatment, HVAC, chemical, food and beverage industry pipeline systems for cutting off or regulating medium flow.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
