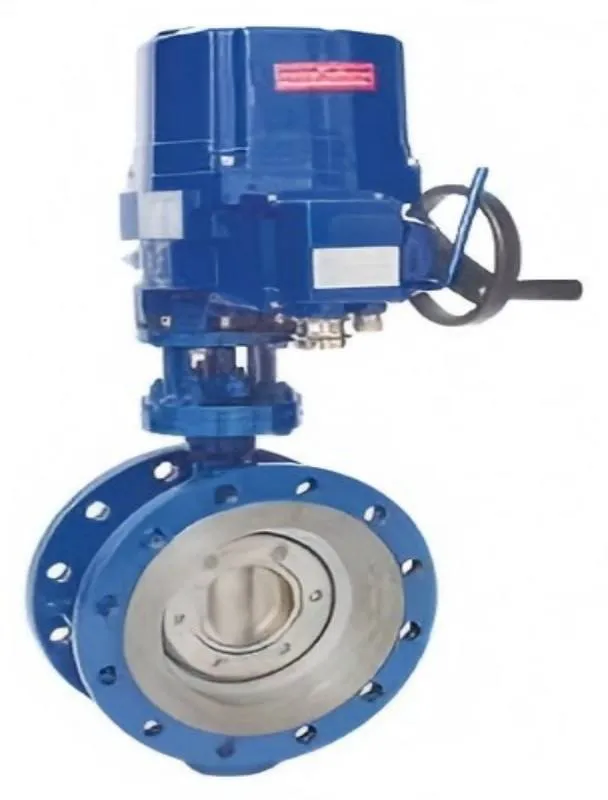

Extended rod high-temperature butterfly valve, pressure: 1.0 MPa - 6.4 MPa, diameter: DN50 - DN2000. Material: WCB carbon steel, 304, 316, 317L, 2205, 2507 duplex steel. It is a butterfly valve designed for high-temperature conditions. The valve stem is extended, and high-temperature heat dissipation fins are designed on the valve stem, reducing the impact of high temperatures on the valve and the actuator. The connection methods of the extended rod high-temperature butterfly valve include: flanged type, flange type, and welded type.

The performance of the electric actuator of the extended rod high-temperature butterfly valve complies with the provisions of JB/T8528-1997 (Technical Conditions for Electric Actuators of Ordinary Valves). The performance of the explosion-proof type complies with the provisions of GB3836.1-2000 (Part 1: General Requirements for Electrical Equipment in Explosive Gas Environments), GB3836.2-2000 (Part 2: Explosion-proof Type "d" for Electrical Equipment), and JB/T8529-1997 (Technical Conditions for Explosion-proof Electric Actuators).

Electrical technical conditions:

1. Power supply: The motor operates on three-phase AC 380V at 50Hz. The control system operates on two-phase AC 220V at 50Hz. Optional power supply: AC 220 - 660V, 50.60Hz.

2. Explosion-proof rating: Explosive gas mixtures of T1-T4 groups.

3. Protection level: IP65/67 (special orders can be IP68).

4. Motor operating mode: Rated operation time is 10 minutes. F-class insulation.

5. Anti-corrosion coating: High-temperature baking paint.

6. Multiple control modes: Switching quantity, analog quantity, bus system, bus + conventional.

The extended rod butterfly valve is suitable for applications where the temperature is ≤ 80 - 120℃, such as in food, medicine, chemical, petroleum, power, textile, papermaking, etc. It is used in water supply and drainage and gas pipelines for regulating flow and blocking the medium.
