Product Code : VCCF--D-D260-CU
Valve parameters:
Nominal pressure: PN1.0MPa - 6.4MPa;
Medium temperature: 425℃;
Nominal diameter: DN50 - DN2000;
Applicable media: water, gas, oil;
Connection dimensions: GB/T9119, HG20592, HG20615.
Main materials:
Valve body: WCB carbon steel, CF8, CF3, CF8M, CF3M stainless steel, 2205, 2570 duplex steel;
Valve plate: WCB carbon steel, SS304, SS316, SS316L stainless steel, 2205, 2570 duplex steel;
Valve shaft: 2Cr13, SS304, SS316, F51, F53 duplex steel.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

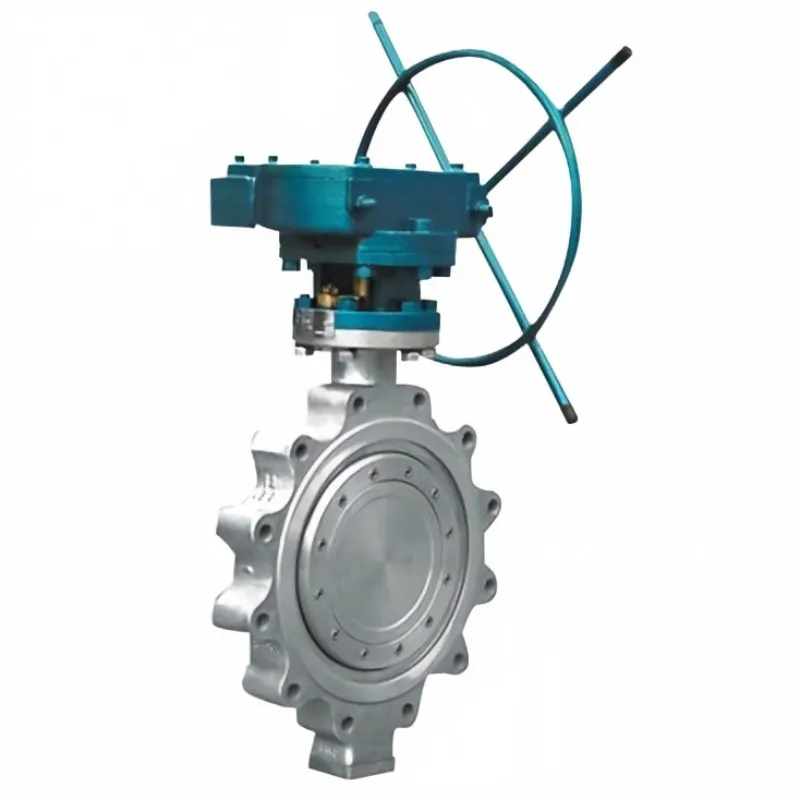

The three-bias eccentric butt-weld butterfly valve belongs to a multi-layer metal-sealed butterfly valve with butt-weld connection. It has a short valve body structure and occupies a small space. The models are D373H, D973Y, D673W, D73F. The pipe diameter ranges from DN50 to DN2000, and the pressure ranges from PN1.0MPa to PN6.4MPa. The three-bias eccentric butt-weld butterfly valve has compensatory sealing and reliable sealing performance.
The three-bias concentric gate valve is equipped with a multi-layer soft-hard laminated sealing ring composed of metal plates and non-metallic plates, which is fixed on the valve plate. The valve body and valve seat sealing surfaces are layer-structured with alloy materials, featuring high temperature resistance, wear resistance, corrosion resistance and high pressure resistance.
The application scope of the three-bias split butterfly valve includes:
Industry application: Applicable to industries such as water supply and drainage, sewage, food, heating, gas, ships, power and water supply, metallurgy, energy systems, and light textile, where the temperature is ≤ 450℃.
Field application: Widely used in fields such as petrochemicals, power generation, urban water supply, water treatment, mining, and pharmaceuticals. In the petrochemical field, it can be used for transportation pipelines of crude oil, refined oil, and corrosive chemical raw materials, as well as in process sections such as high-temperature cracking and catalytic reforming; in the power generation field, it can be used in related process sections.
Functional application: It can be used both for cutting off the medium and regulating the flow of the medium. It has a bidirectional sealing function. During installation, it is not restricted by the direction of the medium flow or the influence of the spatial position. It can be installed in any direction.
