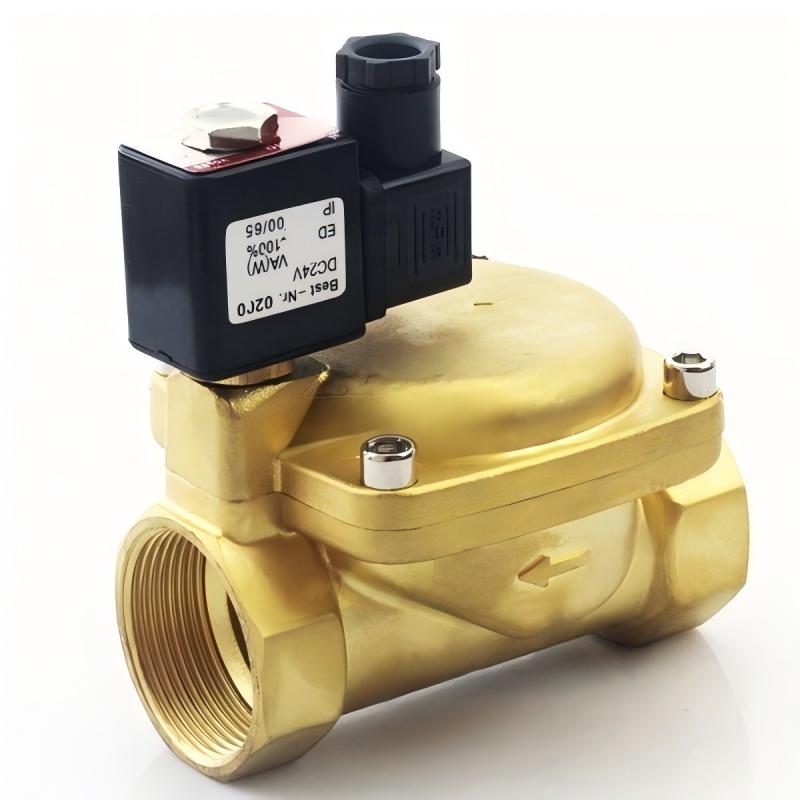

Product Code : VF--DCCC-DC61-CU
Technical parameters
Nominal diameter; DN10-DN50
Structural principle: Direct-acting diaphragm type
Control mode: Normally closed type, Normally open type
Applicable media: water, hot water, gas, oil, etc.
Medium temperature: -5 to 80 degrees Celsius
Sealing materials: Nitrile rubber, Fluorine rubber
Valve body material: Brass
Working pressure: 0 - 0.8 Mpa
Power supply voltage: AC 220V, DC 24V (others can be customized)
Protection level: Standard type IP54
Product Features:
Zero-voltage startup, brass forging, exquisite appearance, reliable performance, compact structure, low power consumption, zero leakage.
Application scope:
It is widely applied in industries such as water treatment for industries, fire protection facilities, power equipment, HVAC (heating, ventilation, and air conditioning), textile printing and dyeing, and papermaking.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Direct diaphragm control method: Normally closed type, normally open type. Applicable media: water, hot water, gas, oil, etc. Medium temperature: -5 to 80℃. Sealing material: nitrile rubber, fluorine rubber. Valve body material: brass. Working pressure: 0 - 0.8 Mpa. Power supply voltage: AC 220V, DC 24V (other options available). Protection level: standard type IP54. Product features: zero-pressure start-up, brass forging, exquisite appearance, reliable performance, compact structure, low power consumption, zero leakage. Application scope: widely used in industrial water treatment, fire protection facilities, power equipment, HVAC, textile printing and dyeing, papermaking and other industries.
The 2W copper series solenoid valves feature zero-pressure startup, brass forging, exquisite appearance, reliable performance, compact structure, low power consumption and zero leakage. It is widely applied in industries such as water treatment for industries, fire protection facilities, power equipment, HVAC (heating, ventilation, and air conditioning), textile printing and dyeing, and papermaking.
