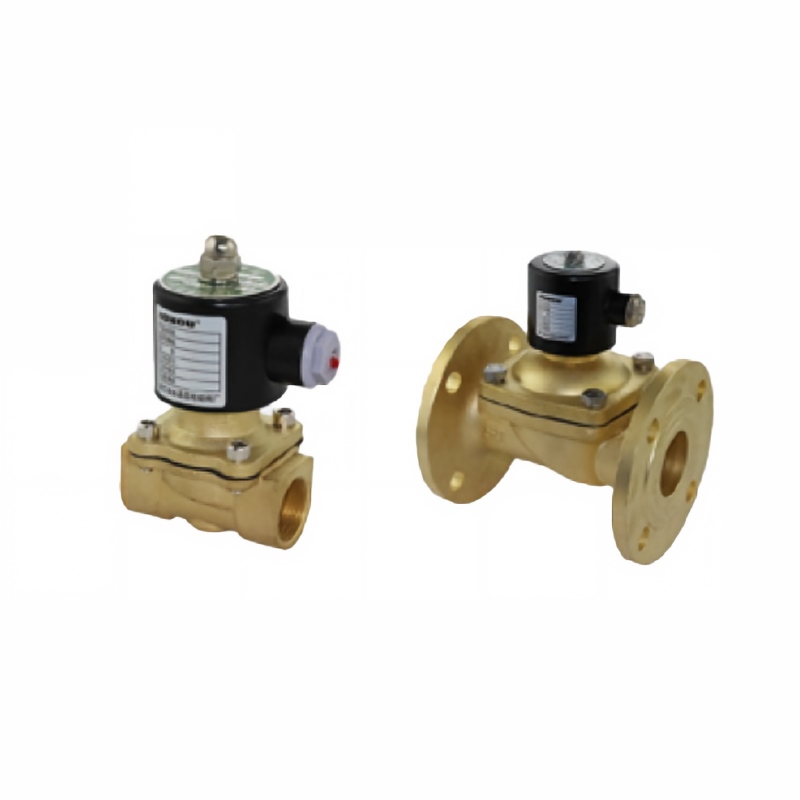

Product Code : VF--DCCC-DC76-CU
Product Specifications:
Product Specifications: DN8 - DN300
Applicable Media: Air, water, oil, steam, gas, corrosive fluids, etc.
Control Mode: Normally Closed
Valve Body Material: Cast iron body, cast steel body, stainless steel (Cast iron body and cast steel body cannot be used for corrosive fluids)
Power Supply Voltage: DC12 - 127V, AC36 - 380V
Media Temperature: -20 - +200℃
Connection Method: Internal thread, flange (external thread and special interface can be customized or equipped with adapter)
Media Viscosity: Less than 50 Cst (greater than this requires customization)
Protection Performance: Waterproof, explosion-proof, anti-corrosion
Connection Method: Terminal block type; lead-in type; plug type
Additional Functions: Manual, check valve
Leakage: Zero
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product Usage:
It covers various fields such as metallurgy, petrochemicals, pharmaceuticals, food, medical, mechanical environmental protection, liquid level box height difference for liquid discharge, etc. It is applicable to medium and large diameter, zero to low pressure pipeline systems.
Structural features:
A valve combining direct action and pilot action;
The valve core is a stainless steel piston type, and the piston ring will not be clogged by the medium;
The coil starts the valve core and pulls the piston at the same time. It can work normally even at zero pressure;
Special coil, less prone to burning out, and it can restart normally after being stopped for a long time.
Working principle:
Normally closed type: When the coil is energized, the electromagnetic force line opens the pilot hole, the pressure in the upper chamber of the main valve piston decreases, thereby using the pressure difference and electromagnetic force to attract the pilot valve core to move the main piston, and the valve port opens; when the power is cut off, the pressure spring resets and closes the pilot hole, the pressure in the upper chamber of the main piston increases, and the main piston moves downward, the valve closes.
The normally open type is the opposite of the normally closed type.
Note: The pressure at the outlet end is greater than that at the inlet end. If the medium is reversed, it will conduct. A check valve can be installed or a valve with built-in check function can be customized.
Product Usage:
Metallurgy, petrochemicals, pharmaceuticals, food, medical, mechanical environmental protection, liquid level tank height difference for liquid discharge, etc. It is applicable to medium and large diameter, zero to low pressure pipeline systems.
