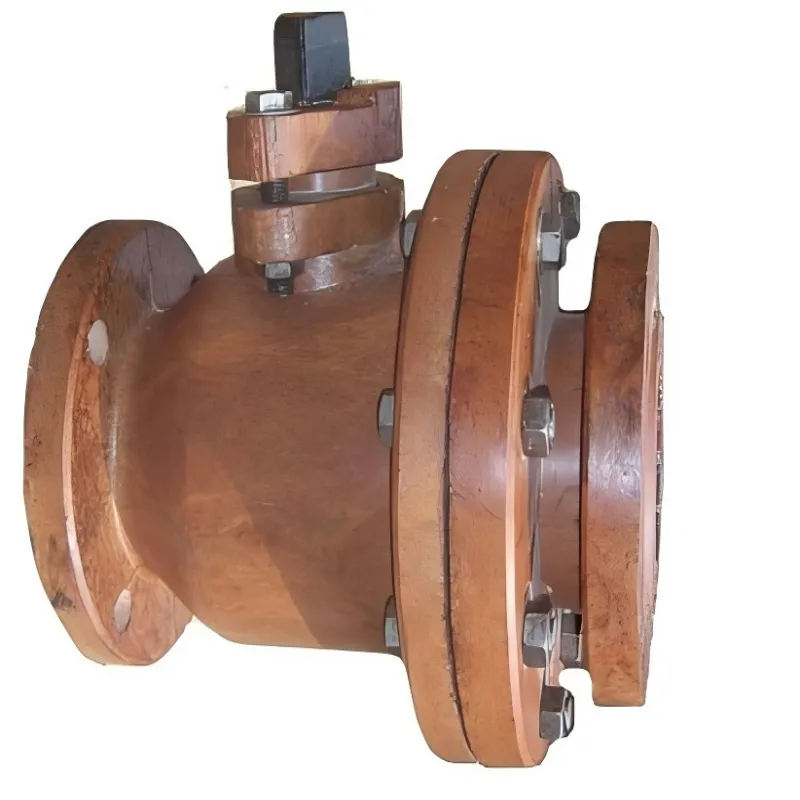

Pneumatic titanium ball valve, titanium ball valve

Product Introduction:

The ball of pneumatic titanium ball valve is floating. Under the action of medium pressure, the ball can produce a certain displacement and press tightly on the sealing surface of the outlet end to ensure the sealing of the outlet end.

1, pneumatic titanium ball valve flow resistance is small, the ball valve is the smallest fluid resistance in all valve categories, even if the diameter of the ball valve, the fluid resistance is quite small.

2, good sealing performance. Ball valve seat (sealing ring) is generally made of PTFE polytetrafluoroethylene and other elastic materials, easy to ensure sealing, and the sealing force of the ball valve increases with the increase of medium pressure.

3, pneumatic titanium ball valve stem seal is reliable. When the ball valve is opened and closed, the stem only rotates 90°, so the packing seal of the stem is not easy to be destroyed, and the sealing force of the stem reverse seal increases with the increase of the medium pressure

Pneumatic titanium ball valve has excellent performance and wide applicability due to its unique combination of materials and actuators. The specific applications are as follows:

Strong corrosive environment: pneumatic titanium ball valve uses the stability of titanium metal material in the strong corrosive environment of oxidation film and self-passivation ability, resistance to a variety of harsh working conditions of strong corrosion. It is suitable for neutral, oxidizing, weak reducing medium environment, and reducing corrosion medium with high temperature or low PH value to improve the stability by adding corrosion inhibitors and other methods.

Suitable for a variety of media: pneumatic titanium ball valve is suitable for water, steam, oil, all kinds of high corrosive chemical media, weak acid and alkali media, ammonia, nitrogen, oxygen, hydrogen, liquefied gas, air, gas, dust gas, etc.

Industry-specific applications: Applications of titanium in corrosive media include seawater, aqua regia and chlorine. Titanium has good corrosion resistance in high temperature, strong acid, strong alkali, nitric acid, chromic acid, hypochloric acid, perchloric acid, and sodium hydroxide, potassium hydroxide, calcium hydroxide, magnesium hydroxide and other media. It also has good corrosion resistance in organic acids such as citric acid, tartaric acid, tannic acid, lactic acid, etc.

Application under special working conditions: in high temperature and high concentration of sodium hydroxide solution, such as 50%~73% solution at 188℃, the corrosion rate of titanium may exceed 1.09mm/a. When the temperature exceeds 77 ° C and the pH of the alkali solution is greater than 12, the possibility of hydrogen absorption and hydrogen embrittleness of titanium in the alkali solution requires special attention

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
