Product Code : VCCF--D-D247-CU
Valve parameters:
Nominal pressure: 0.05MPa-0.1MPa;
Medium temperature: 1000℃;
Nominal diameter: DN50-DN4000;
Applicable medium: flue gas, dust gas, hot and cold air, waste gas;
Connecting faran: ASME B16.5, ASME B16.47, HG 20623, HG20592, HG20615.
Leakage rate: 1%-3%.
Main materials:
Body: 16Mn, Q235, SS304, SS316, 2520, 310S;
Valve plate: 16Mn, Q235, SS304, SS316, 2520, 310S;
Valve shaft: 2Cr13, SS304, SS316, 2520, 310S.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

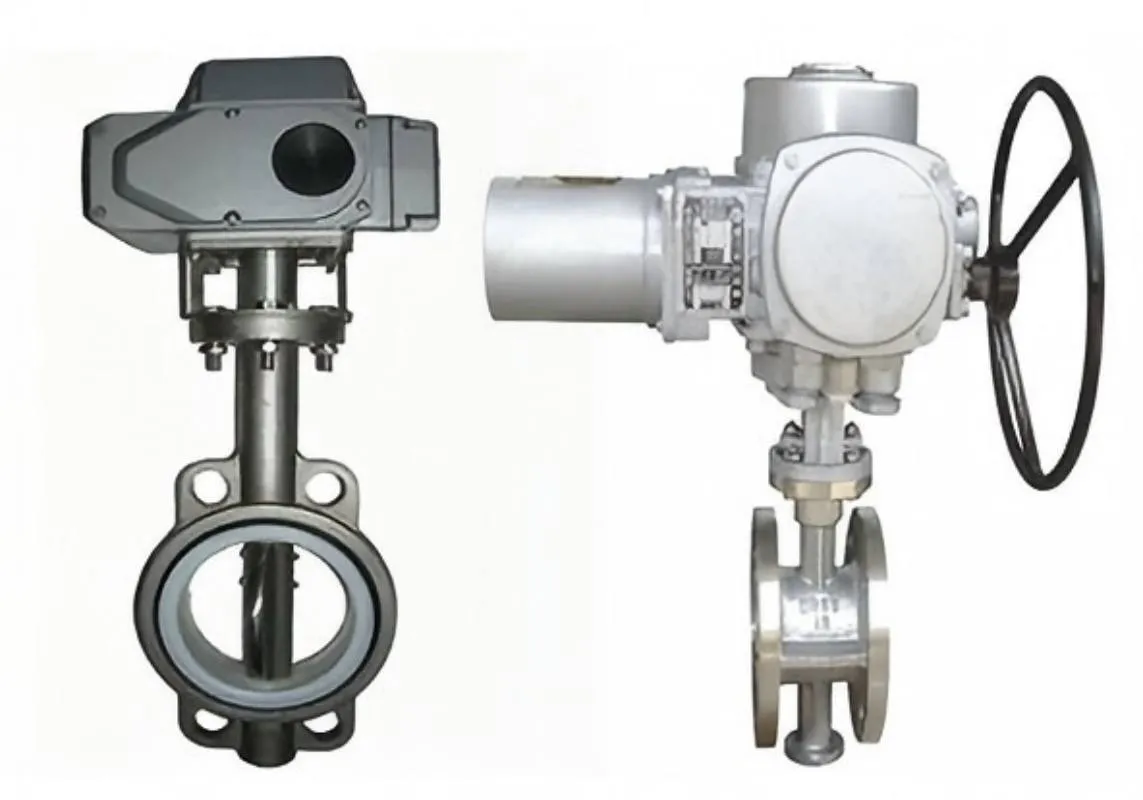

Electric flanged ventilation butterfly valve, model TD941W, is a kind of non-closed butterfly valve, used in all kinds of ventilation conditions, the medium can be smoke, dust, hot and cold air, exhaust gas, etc. Diameter DN50-DN2000, pressure PN0.1MPa, operation mode: electric. Stem can be extended. The applicable temperature is less than 1000℃.
Electric flanged ventilation butterfly valve, middle line type butterfly plate, valve body casting or steel plate welding, small flow resistance, large flux, used in chemical, building materials, power plants, metallurgy, glass, electronics and other industries in the ventilation pipeline, can do flow regulation.
The performance of the electric actuator conforms to the provisions of JB/T8528-1997 (technical conditions for common valve electric devices). The performance of the flameproof type conforms to the provisions of GB3836.1-2000 (Electrical equipment for explosive gas environment: general requirements) GB3836.2-2000(electrical equipment for explosive gas environment: Part 2: flameproof type "d") and JB/T8529-1997 (technical conditions for flameproof electric devices).
Electric technical condition
1, Power supply: three-phase AC AC380V, 50Hz. Two-phase AC AC220V,50Hz;
2, explosion-proof grade: T1-T4 group of explosive gas mixture;
3. Protection level; IP65/67 (special order IP68);
4. The motor is working system; Rated running time is 10 minutes. Grade F insulation.
5, anti-corrosion coating: high temperature baking paint;
6, a variety of control modes: switching, analog, bus system, bus + conventional.
Electric flanged ventilation butterfly valve, middle line type butterfly plate, valve body casting or steel plate welding, small flow resistance, large flux, used in chemical, building materials, power plants, metallurgy, glass, electronics and other industries in the ventilation pipeline, can do flow regulation.
